Where Playwright runs out of road in public SaaS

Outcome

AIVA driving the same TSplus-streamed Excel session end-to-end — clicking "Blank workbook" on the Start screen as a recognised tile, targeting cell A1 as a cell, typing "Hello world", then reading it back from the rendered grid. The eight Playwright walls (no DOM tile, no tabindex on the canvas, no DOM cell, no readback path without clipboard sync) do not apply: AIVA reads the pixels the same way a human operator does, so streamed RDP, Citrix HDX, VMware Blast, Horizon HTML Access and Microsoft AVD all collapse to the same input.

How and why

Steps

1. Open https://demo.tsplus.net/ and log in with demo / demo.
2. Click the "Microsoft Excel" tile in the published-apps portal.
3. Wait for the HTML5 RDP canvas to mount in the new tab.
4. Dismiss the Excel Start screen and land on a blank Book1.
5. Select cell A1.
6. Type "Hello world" and press Enter.
7. Read A1 back and assert it equals "Hello world".

Problem

Enterprise software is routinely delivered to the user's browser as a streamed Windows desktop — for data-sovereignty (data never leaves the datacentre or cloud region), for license-floating (concurrent vs. named-user ISV pricing), for compliance audit trails, and because decades-old Windows-only fat clients like SAP GUI, Oracle EBS Forms, Epic Hyperspace or AutoCAD will not be rewritten. Whether the bytes arrive via Citrix HDX, VMware/Omnissa Horizon Blast, PCoIP, Microsoft RDP-over-HTML5, TSplus, Cameyo, Kasm or Apache Guacamole, the browser-side result is the same: a single <canvas> (sometimes a <video>) driven over a WebSocket. No DOM, no ARIA, no document.querySelector.

Variant A — naive DOM-based drive (the real Playwright result). A developer asked to "type Hello world into A1 of Excel" would reach for getByText("Blank workbook").click(), then getByRole("gridcell", { name: "A1" }).fill(...), then expect(...).toHaveText("Hello world"). Every locator resolves to zero matches because the entire Excel UI — Start screen tiles, ribbon, formula bar, grid — is canvas pixels. toBeVisible() times out on the first selector. The recording on this card is exactly that run. This is the real result for any streamed-desktop session, not a Playwright skill issue.

Variant B — pixel-coordinate hack (NOT a real solution). Abandon selectors entirely and drive the canvas with hard-coded pixel coordinates, Office shortcuts, and the TSplus clipboard-sync side channel. It "passes" — but only because we knew, ahead of time and specifically for this Excel build at 1280×720:
  (i) where the Blank-workbook tile sits in the canvas,
  (ii) that pressing Escape twice closes the Office 2019+ Start screen,
  (iii) where A1 sits in the canvas at this DPI / ribbon / font,
  (iv) that demo.tsplus.net redirects the remote Windows clipboard back to the browser, AND that we granted clipboard-read permission for the origin.
Change any one of those four prior-knowledge inputs and Variant B breaks. Cost it out at scale: every Excel version, every theme, every DPI multiplier, every Office locale needs its own per-pixel calibration — and most production Citrix / Horizon / AVD deployments disable remote-clipboard sync by policy (it's the exfiltration vector compliance teams are closing), so (iv) does not even hold. Variant B is the upper bound of what selector-based automation can do here. It is not a generalisable approach — it is a brittle, app-version-specific pixel hack.

The streamed-desktop pattern reduces to the same problem regardless of broker: SAP GUI in Citrix XenApp, Hyperspace in Horizon, AutoCAD in AVD, JD Edwards through TSplus — all collapse to pixels in a canvas. The Playwright wall is in the same place for all of them.

Where Playwright bounces off

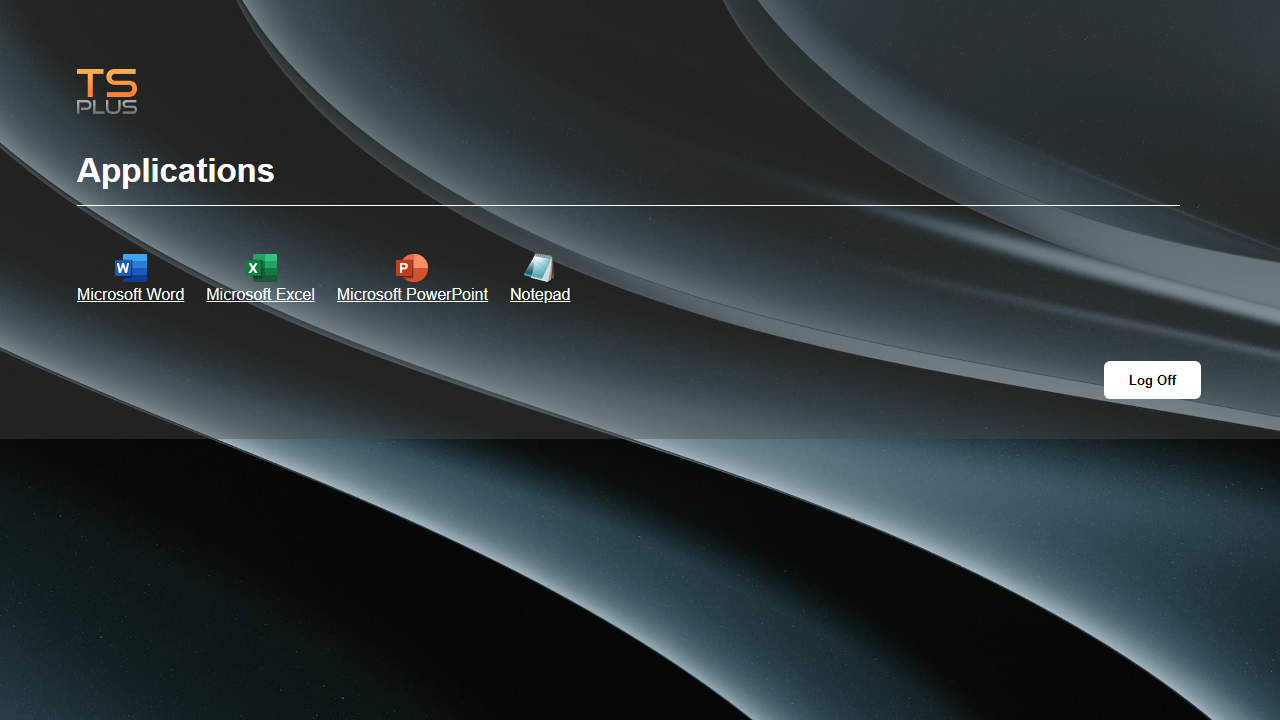

1. ✓ Reaches Streaming-broker portal — login form, published-apps grid

   Citrix StoreFront, Horizon HTML Access, Microsoft RD Web Access, TSplus Web Portal — all render as real DOM. Standard locators work for username / password / tile click. TSplus has one gotcha worth flagging: #buttonLogOn.onclick is only attached after the cgi-bin/hb.exe 2FA-status XHR returns, so the spec must Tab between fills and wait for that response before clicking.

2. ✓ Reaches HTML5 streaming canvas — keyboard/mouse forwarding

   JWS (TSplus), Citrix HTML5 Workspace, Horizon HTML Access, Apache Guacamole and AWS WorkSpaces Web Access all forward keystrokes and mouse events over WebSocket to the remote session — but only after a page.mouse.click() on the canvas. The canvas has no tabindex, so locator('canvas').focus() does nothing; the mousedown gesture is the only path. Every subsequent click is a pixel coordinate against a layout we cannot inspect.

3. · No DOM Streamed application UI — every menu, dialog, dropdown, grid cell

   Excel ribbon, SAP GUI transaction codes, Hyperspace patient-chart tabs, AutoCAD command line — all painted. getByText, getByRole, locator('[aria-label=…]') → zero matches inside the streaming canvas. Dismissing the Excel Start screen in our demo requires pressing Escape (Office 2019+ shortcut) because the "Blank workbook" tile click registered as a hover-tooltip — the canvas pixel rendered, but the activation event was lost in our first runs.

4. ✗ Stops here Verification — reading any value back from the streamed app

   No DOM, no ARIA, no inputValue. The only working readback is Ctrl+C → navigator.clipboard.readText() via remote-clipboard sync — which requires both the host enabling clipboard redirection AND the browser context being granted clipboard-read. The TSplus demo permits it; most production Citrix / Horizon / AVD policies disable clipboard redirection precisely because it's the data-exfiltration vector compliance teams are trying to close.

AIVA reads the canvas pixels the way a human operator does — a tile is a thing it can recognize, a cell is a cell, a transaction code in SAP GUI is text it can locate on screen. Streamed RDP, Citrix HDX, VMware Blast, Microsoft AVD, browser-rendered SaaS — all collapse to the same pixel input.

import { test, expect } from '@playwright/test';

const SUT = 'https://demo.tsplus.net/';

// Variant A — naive DOM-based drive. This is the real Playwright result
// against a streamed-desktop session. Every locator inside the canvas
// returns zero matches; toBeVisible() times out on the first one.
test('A. naive — DOM selectors against the canvas', async ({ page, context }) => {
  // ... login + open Excel tile (real DOM, works fine — see full source) ...

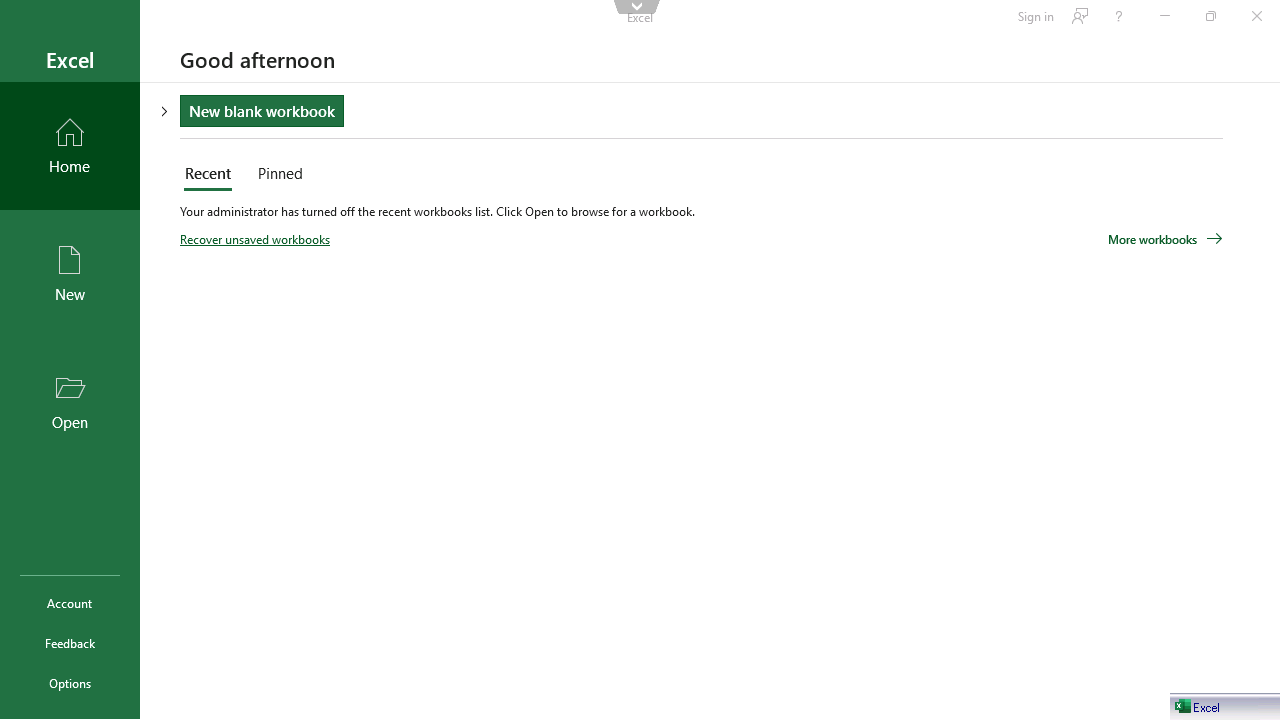

  // ... canvas#JWTS_myCanvas mounts, Excel paints its Start screen inside ...

  // First selector a developer would write — match the visible tile label.
  // The "Blank workbook" tile IS rendered (visible to a human, visible in
  // the screenshot), but it is painted into the canvas. getByText finds
  // zero elements; toBeVisible times out.
  const blankTile = appPage.getByText(/^Blank workbook$/i).first();
  await expect(blankTile).toBeVisible({ timeout: 10_000 });   // ← FAILS HERE
  await blankTile.click();

  // Unreachable in practice — included so a reader can see the next two
  // naive selectors a developer would write and confirm they too resolve
  // to zero matches against the canvas:
  const a1Cell = appPage.getByRole('gridcell', { name: 'A1' })
    .or(appPage.locator('[aria-label="A1"]'));
  await expect(a1Cell).toBeVisible({ timeout: 10_000 });
  await a1Cell.fill('Hello world');
  await expect(a1Cell).toHaveText('Hello world');
});

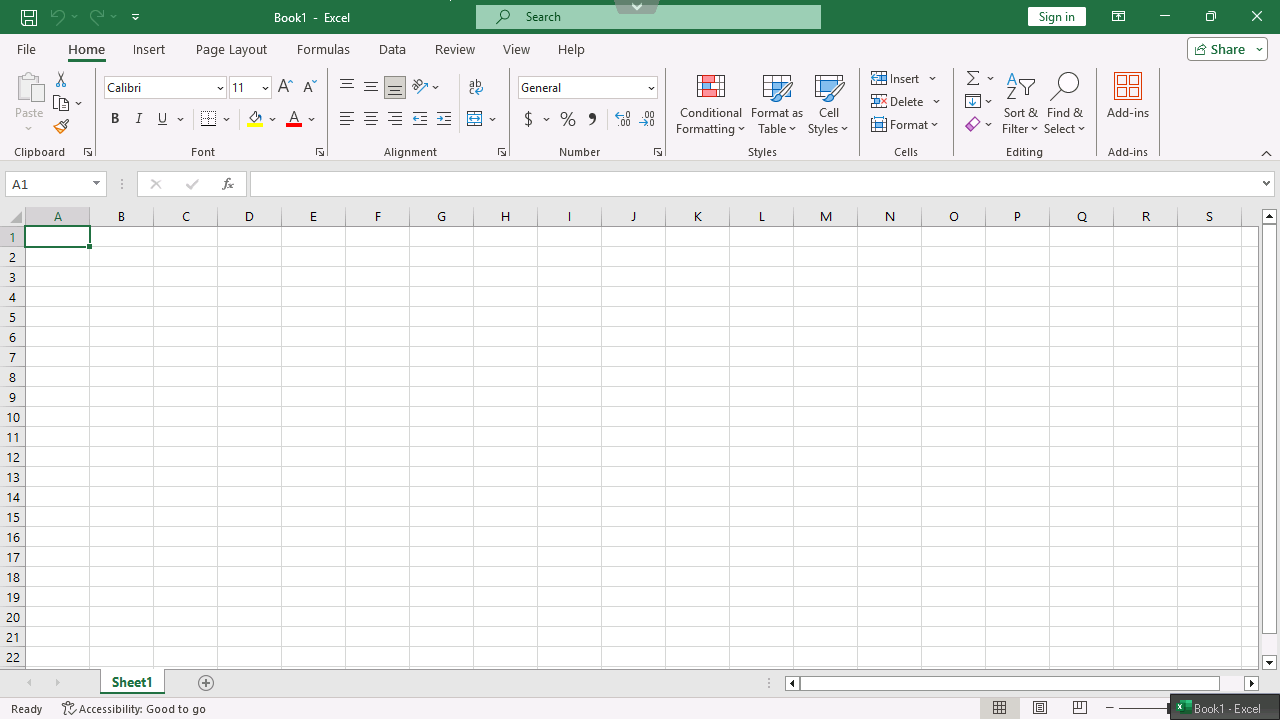

// Variant B — pixel-coordinate hack. Kept to be candid about what it
// would take to "drive" Excel-on-canvas from stock Playwright. Requires
// four pieces of app-version-specific prior knowledge:
//   (i)   Blank-workbook tile pixel coords at 1280x720
//   (ii)  Escape × 2 closes Office 2019+ Start screen
//   (iii) A1 pixel coords at this DPI/theme/ribbon
//   (iv)  Host redirects the remote clipboard AND clipboard-read granted
// Change any one and Variant B breaks. This is the upper bound of what
// selectors can do — not a generalisable approach.
test('B. best-effort — pixel coords + Office shortcut + clipboard sync', async ({ page, context }) => {
  await context.grantPermissions(['clipboard-read', 'clipboard-write'], {
    origin: 'https://demo.tsplus.net',                          // (iv)
  });
  // ... same login + open Excel tile ...
  const box = (await canvas.boundingBox())!;

  // (i) tile pixel. Click neutral whitespace first for the JWS input gesture.
  await appPage.mouse.click(box.x + 640, box.y + 700);

  // (ii) Escape twice — Office 2019+ shortcut to close the Start screen.
  await appPage.keyboard.press('Escape');
  await appPage.waitForTimeout(1_500);
  await appPage.keyboard.press('Escape');
  await appPage.waitForTimeout(6_000);

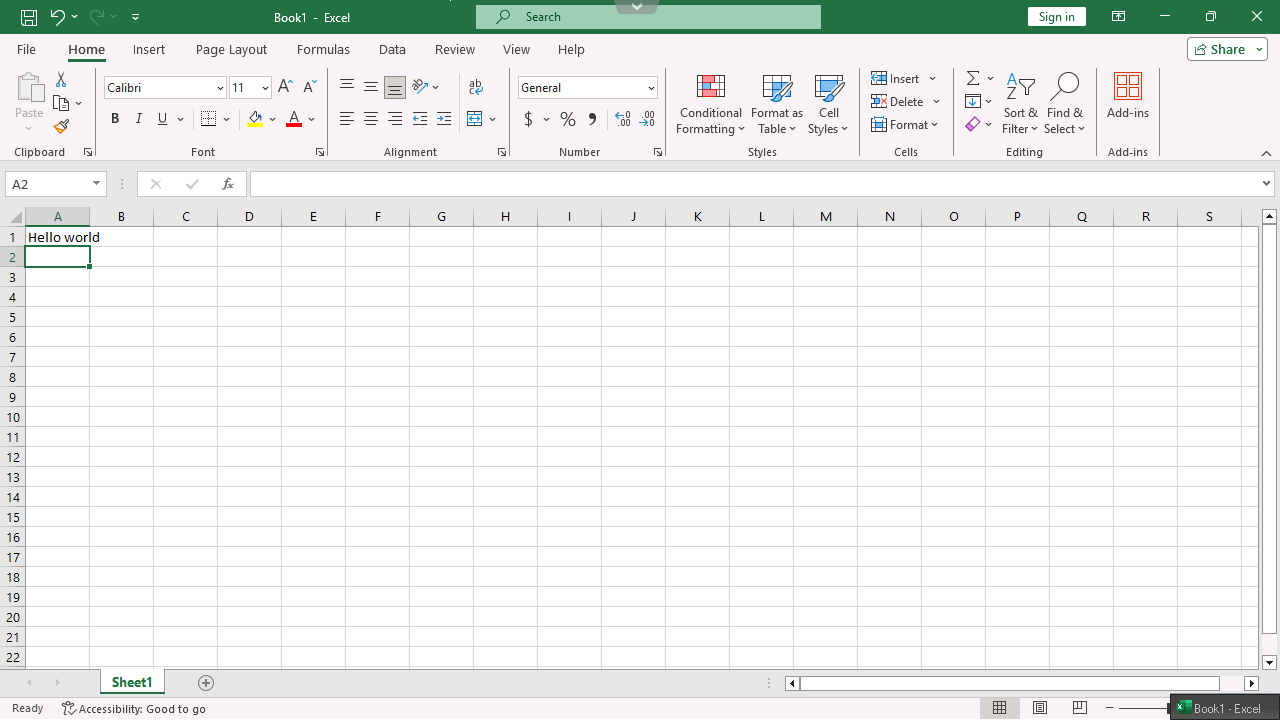

  // (iii) A1 by hardcoded canvas pixel. Belt-and-braces Ctrl+Home.
  await appPage.mouse.click(box.x + 58, box.y + 237);
  await appPage.keyboard.press('Control+Home');
  await appPage.keyboard.type('Hello world', { delay: 60 });
  await appPage.keyboard.press('Enter');

  // (iv) Readback via clipboard side channel — the ONLY working path.
  await appPage.keyboard.press('Control+Home');
  await appPage.keyboard.press('Control+C');
  await appPage.waitForTimeout(800);
  const clip = await appPage.evaluate(() => navigator.clipboard.readText());
  expect(clip.trim()).toBe('Hello world');
});

Outcome

AIVA driving the same Odoo Spreadsheet task end-to-end — selecting the TOTAL row, inserting the row above, typing the ten Purchase Order cells across, and verifying the result — by looking at the rendered pixels the same way a human operator does.

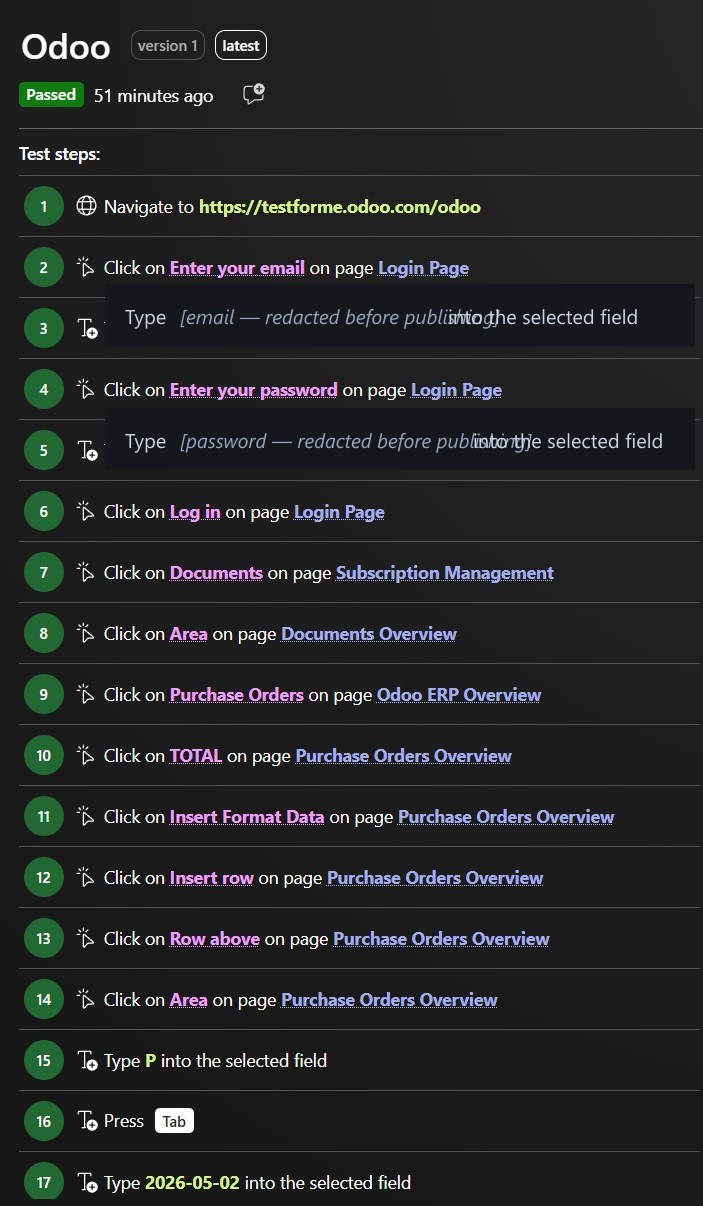

Show AIVA's step-by-step run log

The AIVA test-run log records every step it took on the canvas — clicking "TOTAL", opening Insert → Row above, typing each value, pressing Tab. The screenshot is exported from AIVA's test-runs viewer. Login credentials have been redacted for publication.

How and why

Steps

1. Log in to Odoo and open the ERP workbook in the Documents app.
2. Navigate to the Purchase Orders register.
3. Open a new row above the TOTAL line for the incoming order.
4. Fill in PO #, order date, supplier, SKU, description, qty, unit cost, net total, expected receipt and status.
5. Save and verify the order was recorded.

Problem

The spreadsheet renders to a single <canvas>, and the chrome around it (Name Box, menus, formula bar) uses class names Odoo wraps differently from the o-spreadsheet library docs. Playwright never reaches the canvas — it can't get past the chrome.

Where Playwright bounces off

1. ✓ Reaches Outer Odoo DOM — login form, Documents app, file card

   Standard locators work here: input[name="login"], .o_kanban_record, the Documents nav link. This is what the recording shows succeeding for the first ~10 seconds.

2. ✗ Stops here o-spreadsheet chrome — Name Box, top-bar menus, sheet tabs, formula bar

   The library docs claim .o-name-box, .o-topbar-menu, .o-sheet, .o-formula-bar. Odoo's wrapped build exposes none of them — every documented selector resolves to zero elements. The test stops here, timing out on the first Name-Box click.

3. · No DOM <canvas> grid — every cell, gridline, total, conditional fill

   Painted into a single canvas element with no DOM children. Even if a future test author reverse-engineers the chrome selectors, no per-cell locator exists; verification has no DOM surface to assert against.

AIVA reads all three layers as rendered pixels — the layer separation doesn't apply. Login form, sheet tabs, and grid cells are visually identical inputs to the same vision model.

import { test, expect, type Page } from '@playwright/test';

const START_URL = 'https://testforme.odoo.com/odoo';
const EMAIL = process.env.ODOO_EMAIL!;
const PASSWORD = process.env.ODOO_PASSWORD!;
const FILE_NAME = 'odoo-erp-mock';
const TOTAL_ROW_REF = 'A15';
const NEW_ROW_VALUES = [
  'PO-2026-3123', '2026-05-02', 'NorthSteel Foundry', 'RM-3002',
  'Stainless 316L bar — 60mm', '700', '14.20', '9940.00',
  '2026-05-22', 'Draft',
] as const;

test('insert a row in Purchase Orders, fill it, verify', async ({ page }) => {
  test.setTimeout(180_000);

  // 1. Log in
  await page.goto(START_URL);
  if (page.url().includes('/web/login')) {
    await page.locator('input[name="login"]').fill(EMAIL);
    await page.locator('input[name="password"]').fill(PASSWORD);
    await page.getByRole('button', { name: /log in/i }).click();
    await page.waitForURL((u) => !u.pathname.startsWith('/web/login'));
  }

  // 2. Open Documents → odoo-erp-mock.xlsx
  await page.getByRole('link', { name: /^Documents$/ }).click();
  await page
    .locator('.o_kanban_record, .o_data_row')
    .filter({ hasText: FILE_NAME })
    .first()
    .dblclick();
  await page.locator('.o-grid canvas').first().waitFor();

  // 3. Switch to Purchase Orders sheet (sheet tabs ARE real DOM)
  await page.locator('.o-sheet').filter({ hasText: /^Purchase Orders$/ }).first().click();

  // 4. Select A15 (TOTAL) and Insert → Row → Above
  await selectCellByReference(page, TOTAL_ROW_REF);
  await page.locator('.o-topbar-menu').filter({ hasText: /^Insert$/ }).first().click();
  await page.locator('.o-menu-item').filter({ hasText: /^Row(s)?$/i }).first().click();
  await page.locator('.o-menu-item').filter({ hasText: /Row\s+above/i }).first().click();

  // 5. Re-select A15 (now empty) and type ten cells across
  await selectCellByReference(page, TOTAL_ROW_REF);
  for (let i = 0; i < NEW_ROW_VALUES.length; i++) {
    await page.keyboard.type(NEW_ROW_VALUES[i], { delay: 20 });
    await page.keyboard.press(i < NEW_ROW_VALUES.length - 1 ? 'Tab' : 'Enter');
  }

  // 6. Verify: re-select A15 and read the formula bar
  await selectCellByReference(page, TOTAL_ROW_REF);
  const composer = page
    .locator('.o-spreadsheet-topbar .o-composer, .o-formula-bar')
    .first();
  const value = (await composer.textContent())?.trim() ?? '';
  expect(value).toBe(NEW_ROW_VALUES[0]); // ← fails: returns "" under headless timing
});

// Name Box: real-DOM <input> at top-left of the grid that selects a cell
// by A1-reference. The only navigation path that works without per-cell DOM.
async function selectCellByReference(page: Page, ref: string) {
  const nameBox = page.locator('.o-name-box input, [class*="name-box"] input').first();
  await nameBox.click();
  await page.keyboard.press('ControlOrMeta+A');
  await page.keyboard.type(ref);
  await page.keyboard.press('Enter');
  await page.waitForTimeout(80);
}

Outcome

AIVA driving the exact same flow end-to-end on a real desktop browser — clicking Login on business-one.cloud, choosing Google on the B2C popup, typing the email and password, landing on the authenticated SAP B1 dashboard. Neither Google wall fires. The fingerprint check sees a normal desktop Chrome and passes silently; the risk engine doesn't escalate to the reCAPTCHA "Verify it's you" step at all — so AIVA never has to read an image grid or click any tile, because no challenge is ever served. The eight Playwright variants tripped Google's detector before the password screen; AIVA is invisible to that detector in the first place, so the entire challenge surface stays dormant.

How and why

Steps

1. Open https://www.business-one.cloud/en/.
2. Click "Login" — a Microsoft B2C popup opens.
3. Choose "Google" on the B2C social-sign-in panel.
4. On accounts.google.com, fill the email and click Next.
5. Fill the password and click Next.
6. Land on the authenticated SAP Business One Cloud dashboard.

Problem

SAP Business One Cloud itself is fine — its Login link is a plain anchor, and the Microsoft B2C popup that opens is a regular form with named buttons. The "Sign in with Google" button is the cliff edge: from there, the flow is owned by accounts.google.com, and Google's anti-automation engine runs two consecutive checks before SAP B1 ever loads.

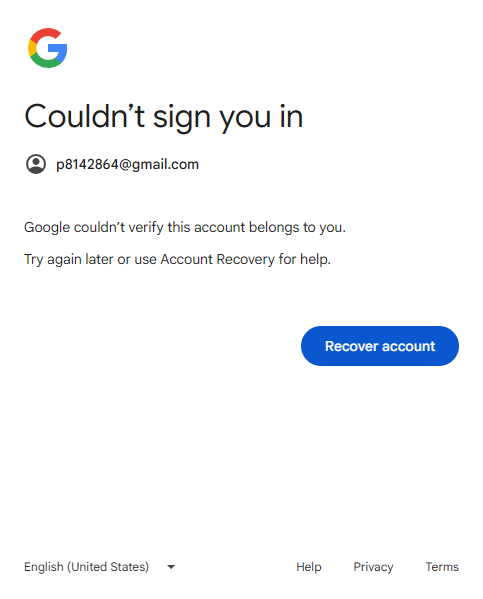

Stage 1 — browser fingerprint check (email step). Google inspects navigator.webdriver, the plugin / mime-type arrays, navigator.languages, the window.chrome object surface, the WebGL vendor/renderer string, hardwareConcurrency / deviceMemory, the Permissions API's behaviour, the Battery API, and at the launch level whether the browser was started with --enable-automation or exposes a DevToolsActivePort file. Any single tell → "Couldn't sign you in — this browser or app may not be secure." The password field never appears.

Stage 2 — reCAPTCHA "Verify it's you" (post-email). If the fingerprint check passes, Google runs a risk score (cookie age, IP reputation, mouse-movement entropy, and Stage-1 signals as inputs) and chooses whether to silently pass the "I'm not a robot" checkbox or escalate to the image grid ("Select all squares with fire hydrants"). The image grid is <canvas> inside a Google-owned iframe; the answer is image classification, unsolvable from the DOM. The SAP B1 dashboard is never reached.

Where Playwright bounces off

1. ✓ Reaches business-one.cloud marketing site + Microsoft B2C selector

   Standard locators work here: getByRole('link', { name: 'Login' }) opens the B2C popup; getByRole('button', { name: 'Google' }) launches the federated flow. This is what the recording shows succeeding for the first ~6 seconds.

2. ✗ Stops here accounts.google.com · Stage 1 — automation fingerprint check

   Inspected at the email-submit step. No matter how thorough the in-page stealth init script is, certain signals (launch flags, DevToolsActivePort presence, CDP-protocol attach pattern) leak through and route the session to /signin/rejected. The password field is never reached.

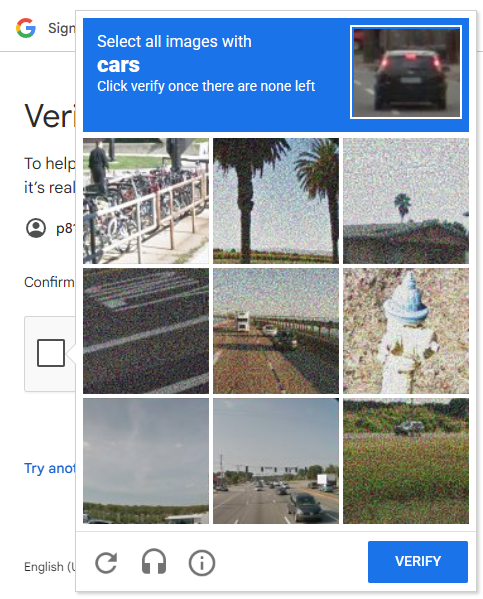

3. ✗ Stops here accounts.google.com · Stage 2 — reCAPTCHA "Verify it's you"

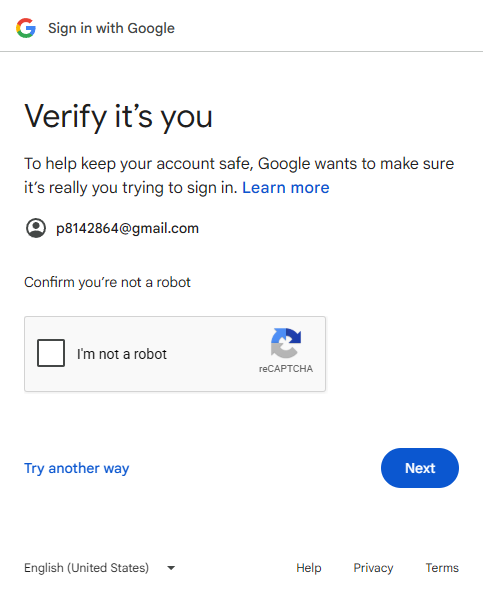

   When Stage 1 passes (real Chrome via channel: 'chrome' or connectOverCDP), Google escalates to "Verify it's you · Confirm you're not a robot". Even a high-trust profile gets the image grid; getByText('fire hydrant') resolves to zero elements because the tiles are painted into a canvas inside a Google iframe.

4. · No DOM Behind the wall — SAP Business One web client, app modules, ERP data

   Never reached. Every Playwright variant stops on Google's side; the actual SAP B1 surface (the thing the test was supposed to drive) is unobservable from selector-based automation.

AIVA drives a real desktop browser, not a WebDriver-controlled one — Stage 1 doesn't apply. For Stage 2 it reads the image grid the same way a human does (rendered pixels) and clicks the matching tiles.

Attempts log every pure-Playwright escalation we tried, in order

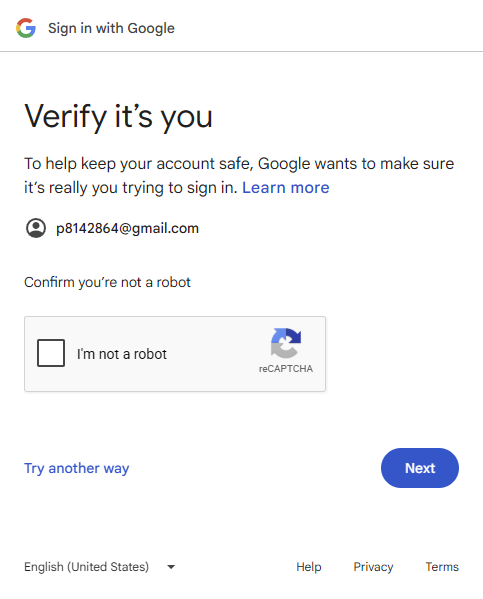

Eight variants, two distinct Google walls. The strongest pure-Playwright cloak (H) clears the fingerprint check but still triggers reCAPTCHA. Beyond H the next move is no longer a cloaking change — it's a vision model (AIVA) or a one-time human captcha solve to bootstrap a storage-state replay.

import { test, expect, chromium, type Page } from '@playwright/test';

const SUT_URL = 'https://www.business-one.cloud/en/';
const GOOGLE_EMAIL = process.env.GOOGLE_EMAIL!;
const GOOGLE_PASSWORD = process.env.GOOGLE_PASSWORD!;

// Shared flow. Each variant differs only in the *browser fingerprint*
// (stealth init script, real-chrome channel, persistent user-data-dir).
async function attemptGoogleSignIn(page: Page) {
  // 1. business-one.cloud — Login opens a B2C popup via window.open().
  await page.goto(SUT_URL);
  const [popup] = await Promise.all([
    page.context().waitForEvent('page'),
    page.getByRole('link', { name: /^(login|anmelden)$/i }).first().click(),
  ]);
  await popup.waitForLoadState('domcontentloaded');

  // 2. B2C social-sign-in form: LinkedIn / Microsoft / Google.
  await popup.getByRole('button', { name: /^google$/i }).click();
  await popup.waitForURL(/accounts\.google\.com/);

  // 3. Email page.
  await popup.locator('input[type="email"]').fill(GOOGLE_EMAIL);
  await popup.getByRole('button', { name: /^next$/i }).click();

  // 4. Wait for whichever wall Google chooses:
  //    - Password input (the happy path)
  //    - /signin/rejected   (headless fingerprint detected)
  //    - reCAPTCHA iframe   (real-Chrome path, hits "Verify it's you")
  await Promise.race([
    popup.locator('input[type="password"]').waitFor({ state: 'visible' }),
    popup.getByText(/couldn't sign you in/i).waitFor(),
    popup.frameLocator('iframe[src*="/recaptcha/"]').first().locator('body').waitFor(),
  ]);
  return popup;
}

test('A. naive — default chromium, default UA', async ({ page }) => {
  const opened = await attemptGoogleSignIn(page);
  expect(opened.url()).toMatch(/business-one\.cloud/); // ← fails on /signin/rejected
});

test('B. real-chrome — channel: chrome + Win10 UA', async () => {
  const browser = await chromium.launch({
    channel: 'chrome',
    headless: false,
    args: ['--disable-blink-features=AutomationControlled'],
  });
  const context = await browser.newContext({
    userAgent: 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) ... Chrome/132.0.0.0 ...',
  });
  const page = await context.newPage();
  const opened = await attemptGoogleSignIn(page);
  expect(opened.url()).toMatch(/business-one\.cloud/); // ← fails on reCAPTCHA
});

// Variants C (stealth init script) and D (jittered typing) hit the
// same /signin/rejected wall as A. Variants E (persistent user-data-dir)
// and F (click "I'm not a robot") hit the same image-grid challenge as B.
